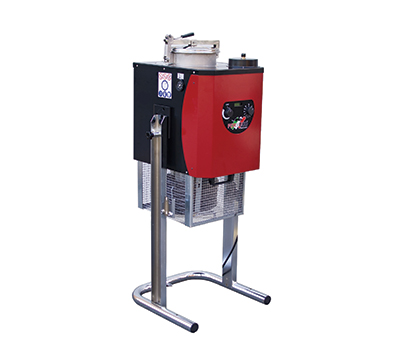

Solvent Recovery System 15L

Description

Explosion proof version ATEX approved
For recycling of flammable and not flammable solvents
Loading capacity: 15 litres
Total volume of the boiler: 19 litres
Inner diameter of the boiler: 240 mm
Processing time: hours 3,30 – 4,30
Working temperature: 50 – 180 °C
Operating: atmospheric pressure
Voltage: 230 V – 50 Hz
Electrical supply: single phase + earth
Connected power: 1040 W
Electrical protection: II2G IIA T3 to T2
Vapour condenser: stainless steel – cooled by air
(on request – version “Wx” – cooled by water in open circuit)
Cover gasket: standard
Dimensions: cm 55 x 65 x 165 H
Weight: 67 kg
Cm 70 x 63 x 117H – Kg. 74
